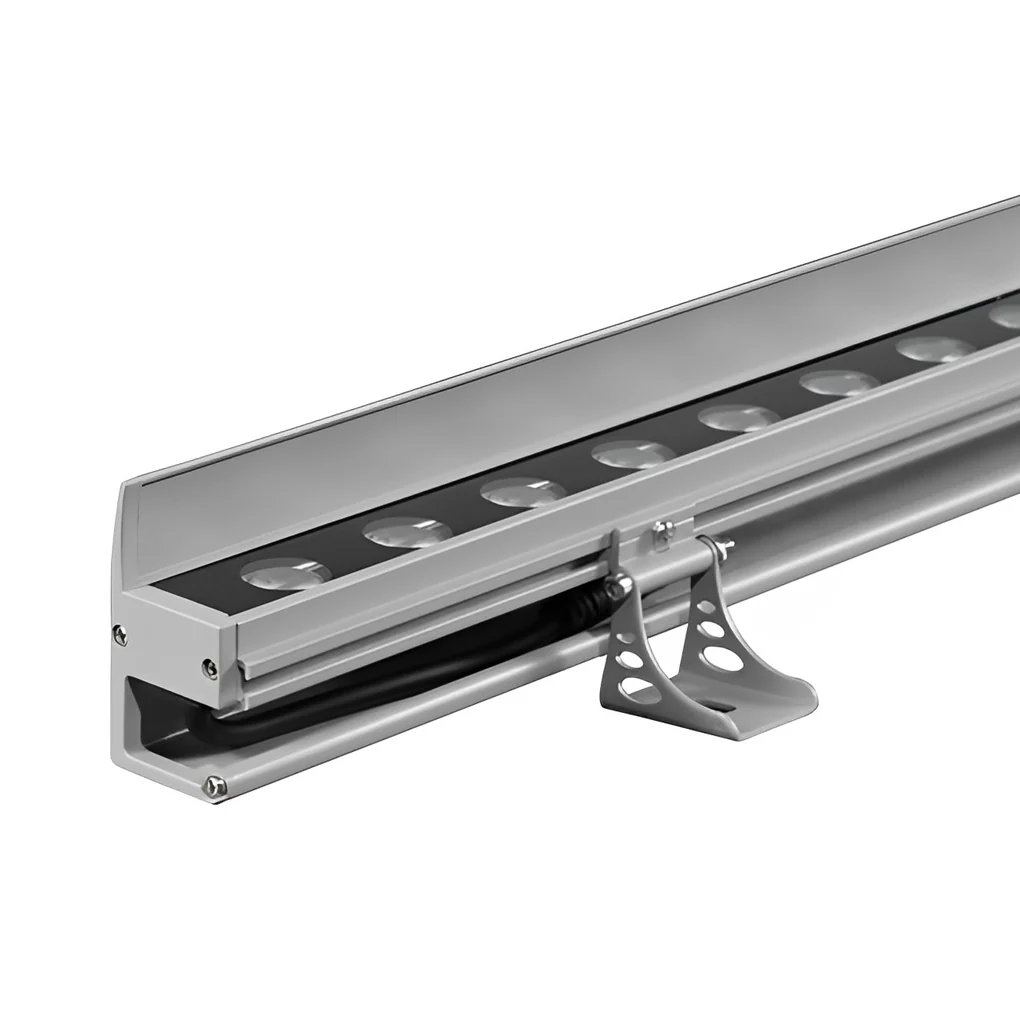

Trama Up-Wash Linear Wall Washer

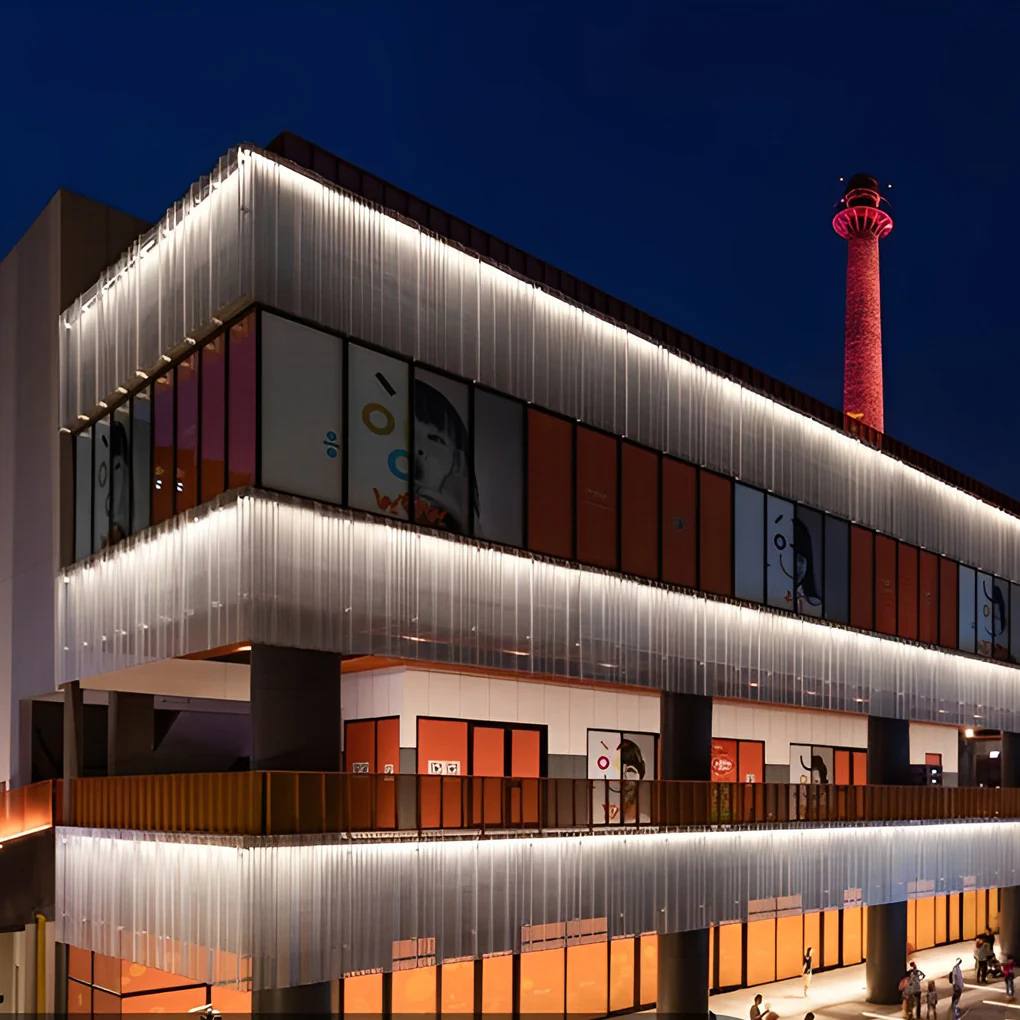

The Trama Up-Wash Linear Wall Washer by Malane Lighting is a weatherproof (IP65) LED bar engineered for upward projection — grazing building walls from the base to highlight material texture and structural lines. The 39-inch aluminum fixture runs on safe DC24V (transformer required) and comes in three power levels (18W, 24W, 36W), two color temperatures (Warm White 3000K, Cool White 6000K), and an optional gasket for glare control. Ideal for gardens and villa facades.
Why you'll love it
- Made for up-washing: Purpose-built for upward projection, it skims light up walls to emphasize stone, brick, and architectural detail.
- Optional gasket: The gasket version prevents glare; the gasket-free version maximizes light output — choose your priority.
- High-CRI accuracy: Uniform, high color-rendering light reproduces wall colors and details faithfully.
- Three power options: 18W, 24W, or 36W to match different wall heights and widths.
- Efficient heat management: Aluminum housing dissipates heat for stable, long-term performance.
- Fully weatherproof: IP65-rated to withstand wind and rain on exposed walls.
Specifications
| Style | Industrial |
| Material | Aluminum body, tempered-glass shade |
| Finish | Gray |
| Light source | LED (integrated, bulb included) |
| Power options | 18W / 24W / 36W |
| Optics | With gasket (anti-glare) / No gasket (max output) |
| Color temperature | Warm White 3000K / Cool White 6000K |
| Light direction | Up |

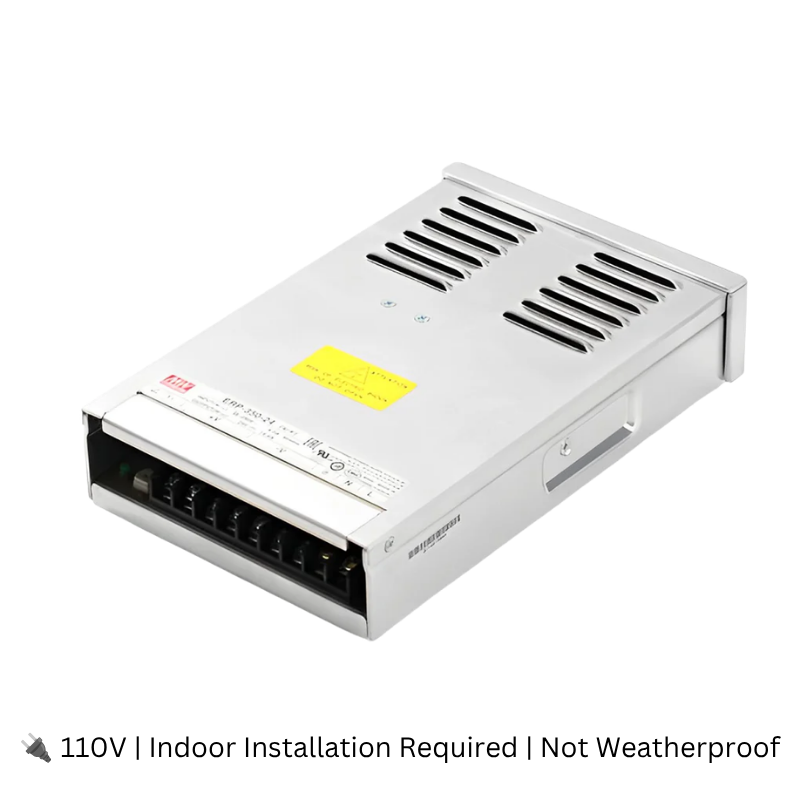

| Voltage | DC24V (transformer required — not included) |
| Power supply | Hardwired, low voltage |
| Control | Wall switch |
| Waterproof rating | IP65 |

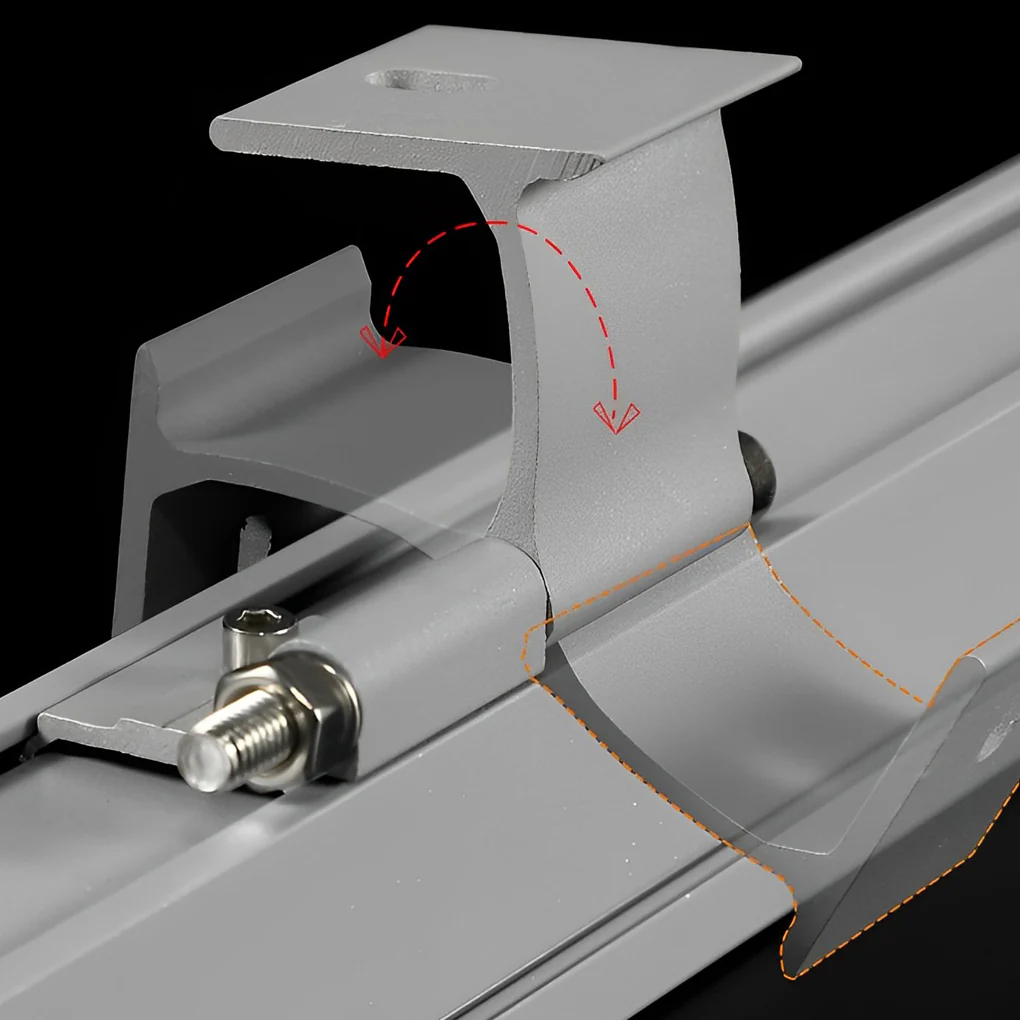

| Mounting | Wall mount (bracket) |
| Dimensions | 39.2"L × 1.6"W × 1.7"H (gasket version 2.7"H) |
| Indoor / Outdoor | Outdoor |
| Best for | Gardens, villa walls, textured/stone facades, columns |
| Care | Turn off power; wipe clean with a dry cloth |
Frequently asked questions
What is the Trama designed for?
It's purpose-built for upward wall washing — mounted at the base, it projects light up the wall to highlight texture and structural lines for a premium architectural effect.
What does the optional gasket do?
The gasket version reduces glare for visual comfort, while the gasket-free version maximizes brightness. Choose based on whether glare control or output matters more.
Do I need a transformer?
Yes. The Trama runs on safe low-voltage DC24V and requires a compatible transformer, which is not included.
Is it waterproof?
Yes. It carries an IP65 rating, withstanding wind and rain on exposed garden and villa walls.
Which wattage should I choose?
Choose 18W for shorter walls, 24W for medium walls, and 36W for tall or wide walls that need more reach and brightness.
